Delta DPS-300AB-95 B 4.6V(4.5V~5.5V) 60A
Highlight & Features
|
Output Characteristics: |
|
|
1.Nominal Output Voltage |
4.6V |
|
2.Output Voltage Adjustment Range |
4.5V~5.5V Adjustable by VR no load condition |
|
3.Output Current |
0~60A |
|
4.Output Power |
300W |
|
5.Rise time |
(At 115Vac&230Vac / 60A, DC output rise time from 5% to 95% of Vout) ≤100ms |
|
6.Start-up Time |
≤1000ms |
|
7.Hold-up Time |
≥8ms |
|
8.Ripple and noise |
≤150mVp-p |
|
9.Line Regulation |
±0.5% |
|
10.Load Regulation |
±3% |
|
Input Characteristics: |
|
|
1.Input Voltage Range |
90-264VAC |
|
2.Nominal Input Frequency |
47～63HZ |
|
3.Power factor |
(230Vac/50HZ@Max Load≥0.95) (100Vac/60HZ@Max Load≥0.98) |
|
4.Input Current |
115Vac≤6A ; 230Vac≤3A |
|
5.Max Inrush Current |
115Vac≤20A ; 230Vac≤40A |
|
6.Leakage Current |
≤1mA(240Vac/50Hz) |
|
7.Efficiency(typ) |
≥83% |
|
Protection Characteristics: |
|
|
1.Overload / Overcurrent |
≤85A，Auto recovery |
|
2.Overvoltage |
<7.5V，no damage, auto recovery |
|
3.Over Temperature |
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
|
4.Short Circuit |
Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed) |
|
Environmental Characteristics: |
|
|
1.Operating temperature |
-25° C to +70° C (-40℃ Cold start) |
|
2.Storage |
-40° C to +85° C |
|
3.Operating Humidity |
20 to 95% RH (no condensation) |
|
4.Storage Humidity |
10 to 95% RH (no condensation) |
|
5.Electrical Safety |
CB/UL/TUV/CCC/CE/BSMI |
|
6.Galvanic Isolation |
Input-Out：3KVAC(10mA),Output-Ground：1.5KVAC（10mA),Output-Ground：500VAC（10mA)，1 minute |
|
7.Harmonics |
IEC61000-3-2 |
|
8.Lighting Surge: |
Refer to IEC1000-4-5 Line to Line:±1KV Line to Earth: ±2KV |
|
9.EMI |
EN55022 ClassB CISPR22 ClassB GB9254 ClassB |
|
Others |
|
|
1.MTBF |
> 700,000 hrs. as per Telcordia SR-332 I/P: 100Vac, O/P: 100% load, Ta: 35° C |
|
2.Cooling |
DC Fan |
|
3. Weight |
0.98Kg |
|
4.Dimension |
215*115*30(L*W*H)mm |

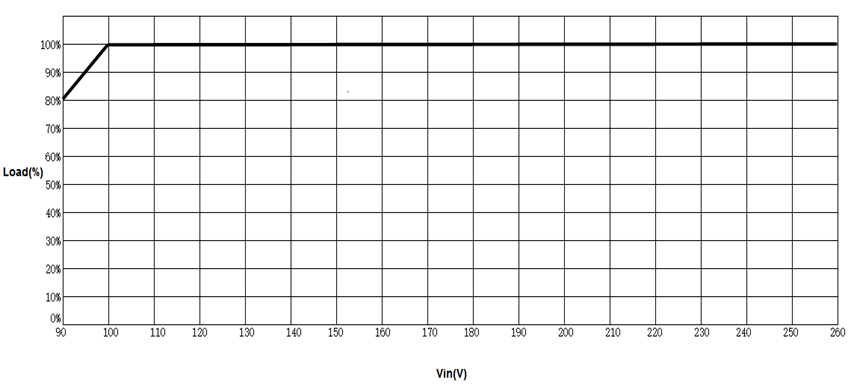

Output De-rating VS Input Voltage:

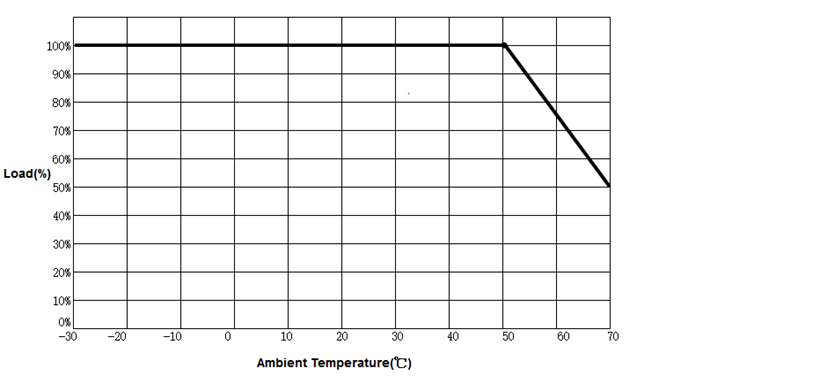

Output De-rating VS Environment temperature:
Mechanical Drawing:
