Delta DPS-300AB-96 B 4.6V(4.5V~5.5V)  60A


Highlight & Features



  • Universal AC input voltage 90V~264V
  • Efficiency ≥ 90%(230V 50Hz/48A)
  • Full corrosion resistant aluminium chassis and conformal coating for PCB board
  • High reliability with fanless design
  • Cold start -40°C, operating -25°C~70°C
  • Low profile design for 1U installation
parameter

Output Characteristics:

1.Nominal Output Voltage

4.6V

2.Output Voltage Adjustment Range

4.5V~5.5V Adjustable by VR no load condition

3.Output Current

0~60A

4.Output Power

300W

5.Rise time

0.1s~100ms

6.Start-up Time

230Vac 50Hz/60A2000ms OR 115Vac 60Hz/50A3000ms

7.Hold-up Time

≥10mS

8.Ripple and noise

150mVp-p

9.Line Regulation

±0.5%

10.Load Regulation

±3%

Input Characteristics:

1.Input Voltage Range

90-264Vac

2.Nominal Input Frequency

4763Hz

3.Power factor

115Vac 60Hz/50A PF≥0.98 OR 230Vac 50Hz/60A PF≥0.93

4.Input Current

115Vac5.3A 230Vac2.2A

5.Max Inrush Current

115Vac≤20A 230Vac≤40A

6.Leakage Current

<1mA(240VAC)

7.Efficiency(typ)

90%

Protection Characteristics:

1.Overload / Overcurrent

≤85AAuto recovery

2.Overvoltage

<7.0Vno damage, auto recovery

3.Over Temperature

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

4.Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Environmental Characteristics:

1.Operating temperature

-25° C to +70° C (-40 Cold start)

2.Storage

-40° C to +85° C

3.Operating Humidity

20 to 95% RH (no condensation)

4.Storage Humidity

10 to 95% RH (no condensation)

5.Electrical Safety

CB/UL/TUV/CCC/CE/BSMI/FCC

6.Galvanic Isolation

Input-Out3KVAC(10mA),Output-Ground1.5KVAC10mA),Output-Ground500VAC10mA)1 minute

7.Harmonics

IEC61000-3-2 Class D

8.Lighting Surge:

Refer to IEC61000-4-5 Line to Line:±2KV Line to Earth: 4KV

9.EMI

CE:ClassB RE:ClassB MS: normal operating

Others

1.MTBF

> 700,000 hrs. as per Telcordia SR-332 I/P: 100Vac, O/P: 100% load, Ta: 35° C

2.Cooling

Convection Cooling

3. Weight

1Kg

4.Dimension

210*80*31(L*W*H)mm


Output De-rating VS Input Voltage:



Output De-rating VS Environment temperature:


Mechanical Drawing:

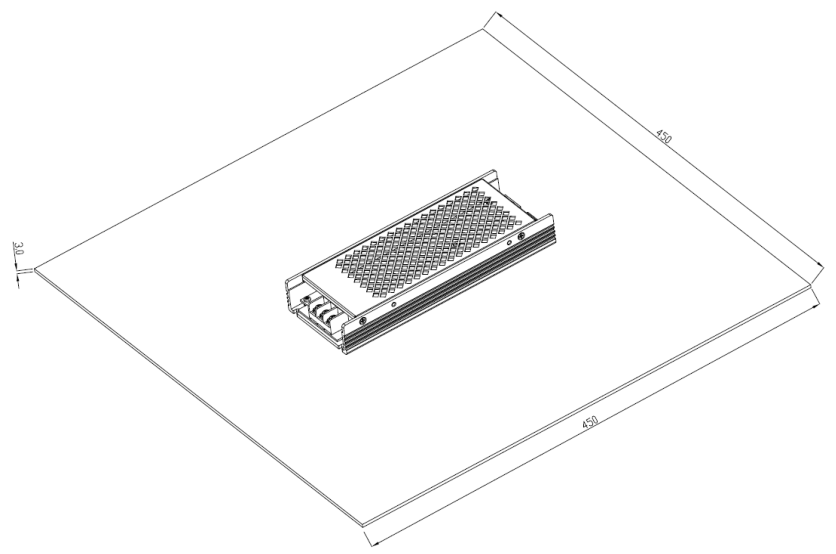

Refer to output power de-rating curve, add less than 450mm*450mm*3mm aluminum plate auxiliary cooling:
